Features

PygWalkerView

The PygWalkerView view renders a page containing PyGWalker html. This view takes a queryset parameter and includes all data in the queryset for visualizations. By default fields defined in the model will be included. To exclude fields or include additional fields (such as related fields), use the field_list parameter to specify exact fields desired for visualizations.

A Bootstrap 5 template is included, but can be overwritten using the template_name parameter.

Parameters

field_list: list of model fields to include (defaults to fields defined in the model)
queryset: queryset providing data available to visualization
theme: PyGWalker theme to use for pyg html (defaults to “media”)
title: title used on html render
template_name: template used when rendering page; (defaults to pygwalker/bs5/pygwalker.html)

Usage Examples

from djangoaddicts.pygwalker.views import PygWalkerView

class MyPygWalkerView(PygWalkerView):
    queryset = MyModel.objects.all()

Explicitly Defined Fields

from djangoaddicts.pygwalker.views import PygWalkerView

class MyPygWalkerView(PygWalkerView):
    queryset = MyModel.objects.all()
    title = "MyModel Data Analysis"
    theme = "light"
    field_list = ["name", "some_field", "some_other__related_field", "id", "created_at", "updated_at"]

Custom Template

Custom views/templates can be used to override the Bootstrap 5 templates provided. Here is an example:

from djangoaddicts.pygwalker.views import PygWalkerView

class MyPygWalkerView(PygWalkerView):
    queryset = MyModel.objects.all()
    template_name = "my_custom_template.html"

StaticCsvPygWalkerView

The StaticCsvPygWalkerView view renders a page containing PyGWalker html with data sourced from a static csv file.

A Bootstrap 5 template is included, but can be overwritten using the template_name parameter.

Parameters

csv_file: csv file containing data to visualize
theme: PyGWalker theme to use for pyg html (defaults to “media”)
title: title used on html render
template_name: template used when rendering page; (defaults to pygwalker/bs5/pygwalker.html)

Usage Examples

from djangoaddicts.pygwalker.views import StaticCsvPygWalkerView

class MyPygWalkerView(StaticCsvPygWalkerView):
    csv_file = "my_csv_file.csv

Custom Template

Custom views/templates can be used to override the Bootstrap 5 templates provided. Here is an example:

from djangoaddicts.pygwalker.views import StaticCsvPygWalkerView

class MyPygWalkerView(StaticCsvPygWalkerView):
    csv_file = "my_csv_file.csv
    template_name = "my_custom_template.html"

DynamicCsvPygWalkerView

The DynamicCsvPygWalkerView view is page that allows users to upload a csv file and creates the PyGWalker interface based on data in the uploaded csv file. To use this view, add the following to your INSTALLED_APPS in settings.py:

djangoaddicts.pygwalker

and add the following to your project-level urls.py:

path("pygwalker/", include("djangoaddicts.pygwalker.urls"), ),

The page can be reached using a link such as:

<a href="{% url 'pygwalker:' %}">my link</a>

Page Examples

Initial Page

initial page

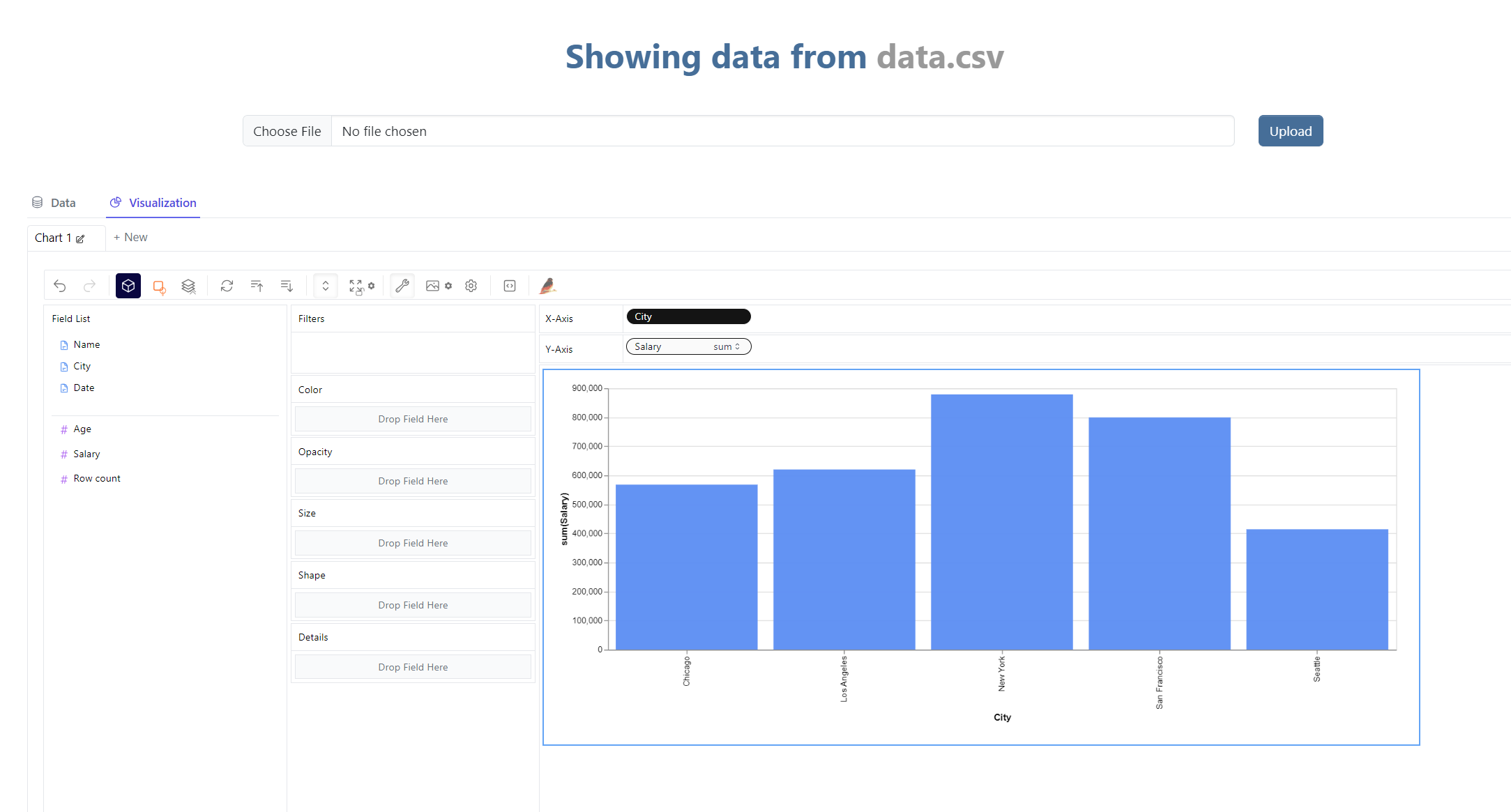

Rendered Visualization

rendered visualization

GenericPygWalkerView

The GenericPygWalkerView creates a PyGWalker visualization interface from a provided app and model passed as kwargs. If query parameters are present, it includes only filtered data, based on query parameters, in the PyGWalker interface. To use this view, add the following to your INSTALLED_APPS in settings.py:

djangoaddicts.pygwalker

and add the following to your project-level urls.py:

path("generic_pyg/<str:app_name>/<str:model_name>/", GenericPygWalkerView.as_view(), name="generic_pyg"),

The page can be reached using a link such as:

<a href="/pygwalker/generic_pyg/my_app/my_model">my pygwalker link</a>

PygWalkerListView

The PygWalkerListView is a list view that extends the HandyHelperListView (from handyhelpers) to add an icon for a PyGWalker visualzation interface. If the list view is filtered, include only filtered data in the PyGWalker interface.

A Bootstrap 5 template is included, but can be overwritten using the template_name parameter.

Usage Examples

from djangoaddicts.pygwalker.views import PygWalkerListView

class ListProducts(PygWalkerListView):
    """list available MyModel entries"""
    queryset = MyModel.objects.all()
    title = "MyModel Entries"
    table = "myapp/table/mymodels.htm"

PygWalkerPaginatedListView

The PygWalkerPaginatedListView is a list view that extends the HandyHelperPaginatedListView (from handyhelpers) to add an icon for a PyGWalker visualzation interface. If the list view is filtered, include only filtered data in the PyGWalker interface.

A Bootstrap 5 template is included, but can be overwritten using the template_name parameter.

Usage Examples

from djangoaddicts.pygwalker.views import PygWalkerPaginatedListView

class ListProducts(PygWalkerPaginatedListView):
    """list available MyModel entries"""
    queryset = MyModel.objects.all()
    title = "MyModel Entries"
    table = "myapp/table/mymodels.htm"
